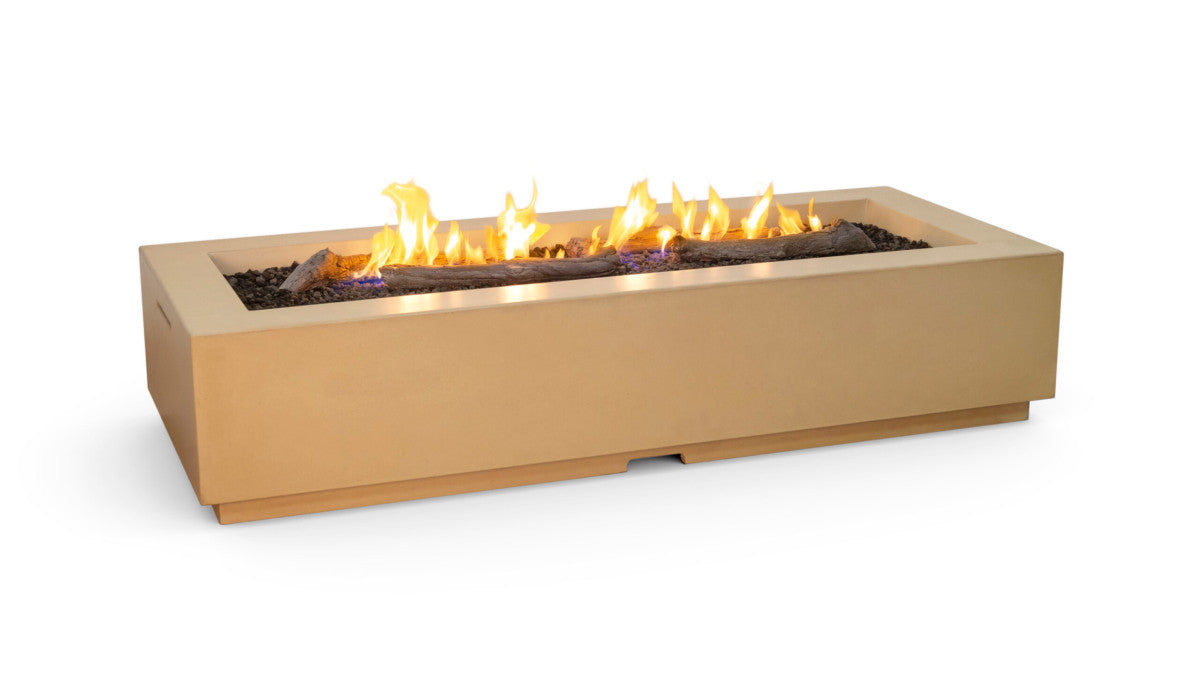

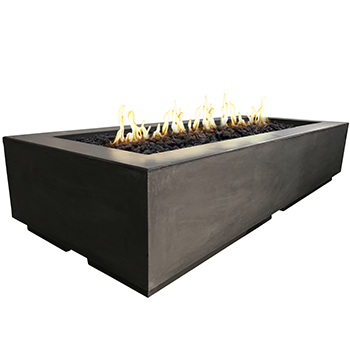

American Fyre Designs - Louvre Long Rectangle Fire Pit

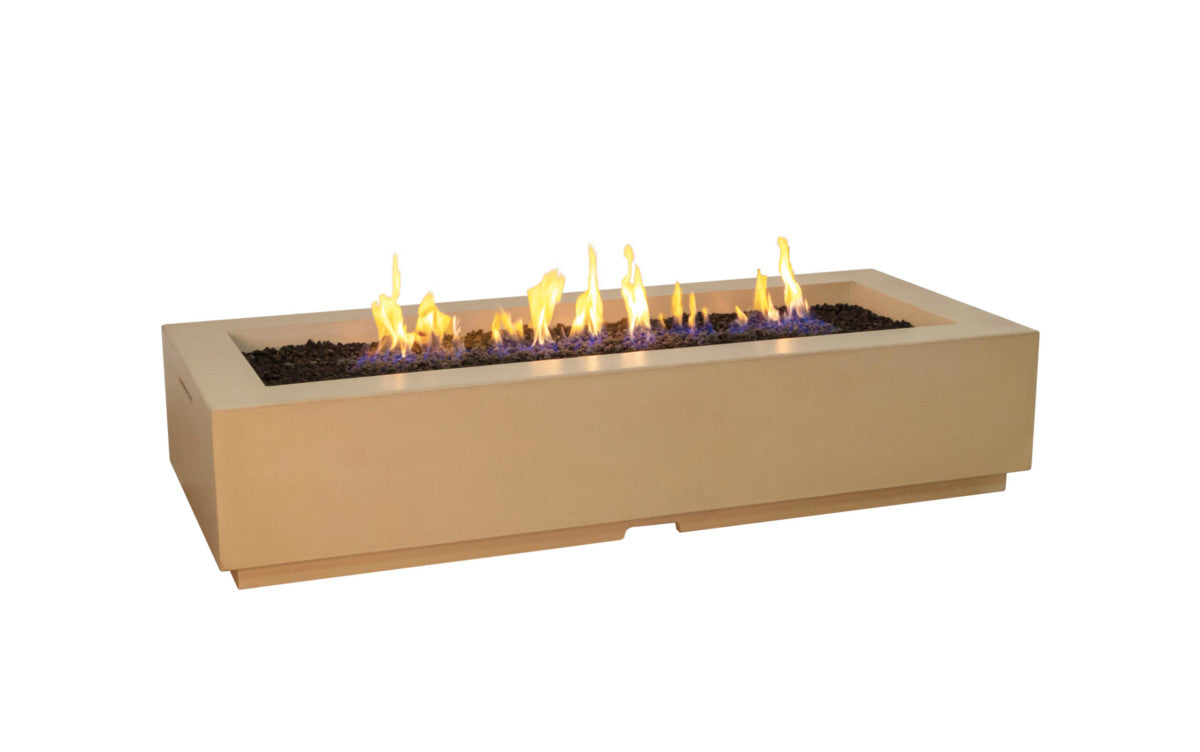

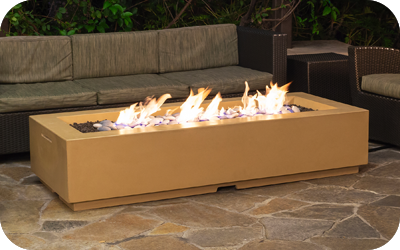

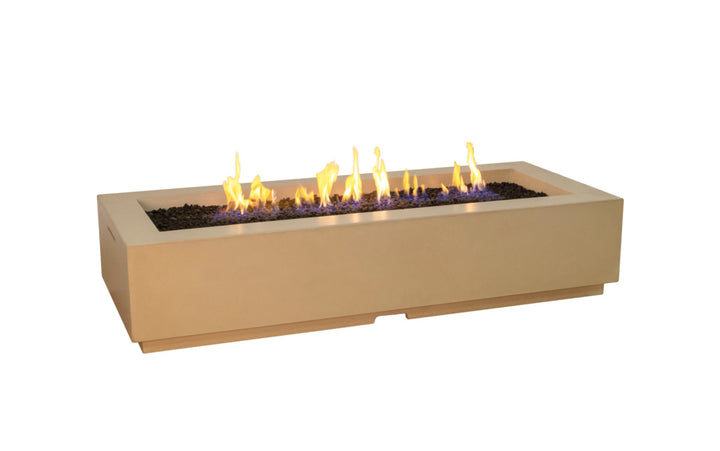

The American Fyre Designs™ (AFD) Louvre Long Rectangle Fire Pit is the hottest trend right now because of their simple, contemporary design and versatility of uses. The Louvre Series of Fire Pits brings a sleek, contemporary look to the classic outdoor fire pit. With options such as glass, creekstones, lava coals, or campfire logs, these fire pits can enhance any backyard. Whether you're entertaining guests or unwinding after a long day, the gentle crackle of the fire and the soft glow of the flames offer a sense of comfort and tranquility.

Available in multiple body finish colors: White Aspen, Café Blanco, Black Lava, Smoke, Travertine, Dark Basalt and Light Basalt.

This fire pit cannot accommodate an LP tank inside the unit; selecting Propane may require Tank/End Table and Hose.

FEATURES:

• Use your Smartphone to Control your Outdoor Fire Feature (FyreStarter version only)
• Expertly handcrafted from innovative Glass Fiber Reinforced Concrete (GFRC)
• Simple Design for Contemporary Décor
• Stainless Steel burners
• Manual Flame Sensing Control Valve
• Fuel options include Natural Gas or Propane
• Certified to ANSI Standards.

SPECIFICATIONS:

• Dimensions: 72 1⁄4”w x 30 1⁄4”d x 15 1⁄4”h
• 48” linear stainless steel burner
• BTU Ratings: 65,000 (NG & LP)
• BTU Ratings w/ FyreStarter: 100,000 (NG & LP)
• Media not included

DOCUMENTS (manuals):

• Installation & Owner's Manual

CARE & MAINTENANCE:

CLEANING
Because the fireplace is constructed from GFRC, a concrete product, and the color is CAST all the way through, you can clean the unit like you would other concrete surfaces.
* The fireplace can be hosed off to remove most of the dust.
* Before re-sealing or to remove stubborn stains, the entire fireplace should be thoroughly cleaned.
Use CLR, a concrete cleaner which can be purchased from Home Depot, and a nylon scrub brush, taking care to rise off the residue. Follow the instruction on the package!

RE-SEALING
Your fireplace comes from the factory sealed with multiple coats of a non-glossy, penetrating concrete sealer.
Application of a similar product semi-annually is recommended, however there is nothing that can protect against pollution and/or acid rain which could stain the finish.
For best results, perform during cooler AM/PM temperatures:
*Clean the entire fireplace with CLR (information above).
*Allow fireplace to dry completely.
*Apply masonry sealer to entire fireplace (a sponge works well for this application).

SCREEN
If you have purchased a screen, although it has been powder-coated, it is still an iron product. During long periods of moisture, screens should be stored away from the elements. If areas of rust occur, they can be treated with any exterior rust-proof flat-black paint.

FIREFALLS
Please see “CLEANING” above for maintenance on the exterior. It is necessary to keep the water level above the pump. To view water level, access the reservoir through the trap door on the left side. Move the glass aside then slide away door in screen. Distilled Water is recommended OR Algaecide & De-Lime products for Fountains should be used to control algae & lime.

FUEL
Intended for exterior use with gas as fuel source. Wood-burning voids warranty. Excessive heat and high flames may result in cracks to exterior structure. Do not use fireplace in sub-freezing temperatures. Damage may result from rapid temperature changes.

PLACEMENT
Free-standing EXTERIOR fireplaces. Use only in well-ventilated areas. It is Buyer's responsibility to place fireplace in a spot that meets any local codes.

PLUMBING
Fireplaces come plumbed for gas (hook-up and gas logs not included). Advise right/left side for gas turn-on key AND outback or underneath for gas source line.

In freeze-thaw areas, the fireplace must be covered to keep the elements from collecting inside of the fireplace. Our fireplaces are designed to utilize gas as the fuel source. Wood-burning will void the warranty.

AMERICAN FYRE DESIGNS™ LIMITED WARRANTY HIGHLIGHTS

THREE (3) YEAR WARRANTY
American Fyre Designs™ exterior (GFRC) Fireplaces, Firetables, Fire Bowls, Fire Urns, and Fire Pits are warranted for three (3) years.

ONE (1) YEAR WARRANTY
American Fyre Designs™ burners, electronic components, and valves are warranted for one (1) year.

This warranty applies to the original purchaser with invoice or proof of purchase and to single family residential use only. For additional information regarding this warranty, or to place a warranty claim contact your authorized AFD dealer.
