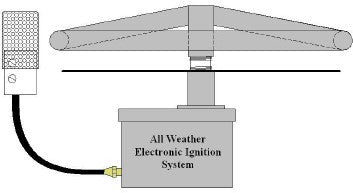

All Weather Electronic Ignition System - Standard Capacity AWEIS SC Please note that as of 2018 Fire by Design has improved their system with a new pilot head that has 2 separate pilot heads. The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits on the market today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical. With a maximum gas output of 290K Btu/hr – which is quite a large amount of gas - it can be used in most fire feature applications. For those features requiring even more gas we have the AWEIS High Capacity System.
This fire pit ignition system is the most reliable system we have tested to date so we offer this full electronic ignition system as a standard option on COOKE fire pit tables. All Weather Electronic Ignition System - Standard Capacity AWEIS SC
- Flame / Heat Sense: Thermopile
- Ignition Type: Hot Surface Ignition (Glow Plug) Ignition
- Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Max. Btu Output: 290K Btu/hr
- Inlet / Outlet Size: ½" FPT
- Operating Voltage: 24 volts ac
- Inlet Gas Press. Limit: 2.0 psi Valve

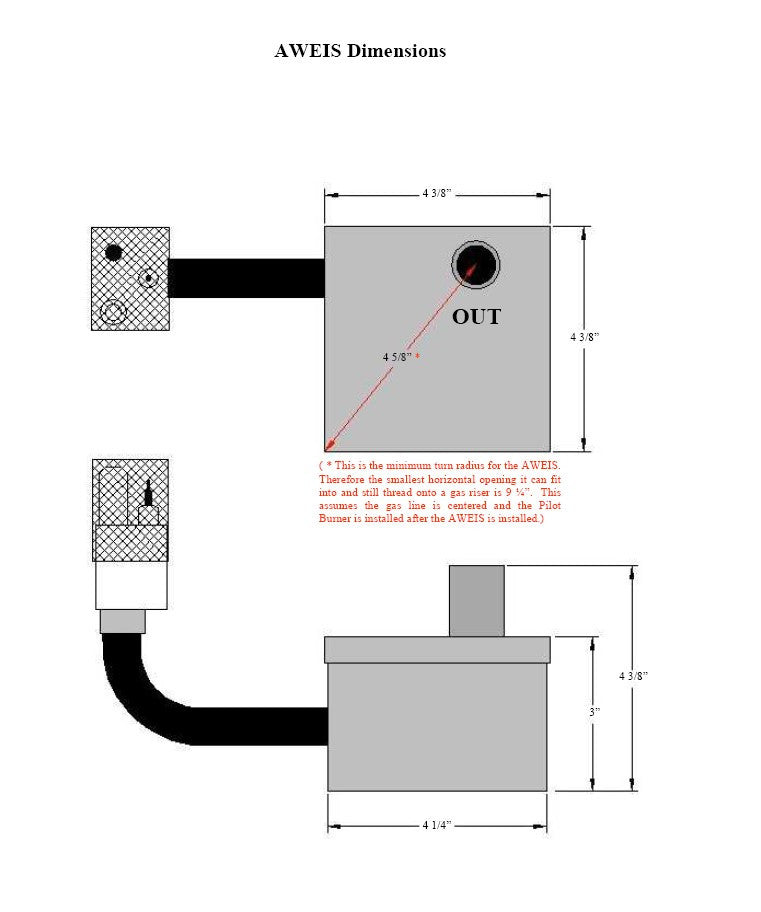

- Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits on the market today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical. With a maximum gas output of 290K Btu/hr – which is quite a large amount of gas - it can be used in most fire feature applications. For those features requiring even more gas we have the AWEIS High Capacity System.
This is the best industry standard full electronic ignition system for fire pit tables and fire pits.
Model Number SCGNG or SCGLP
Includes

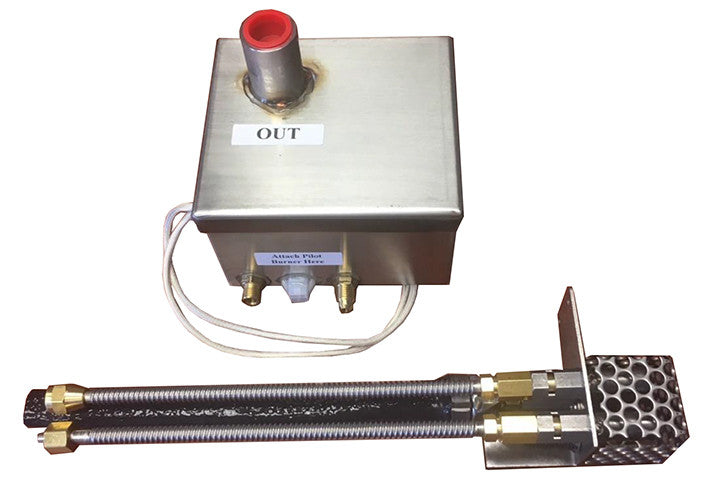

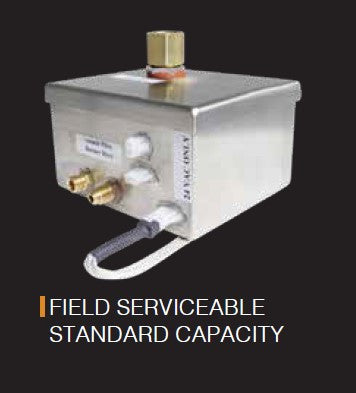

1. All weather electronic ignition system main control box

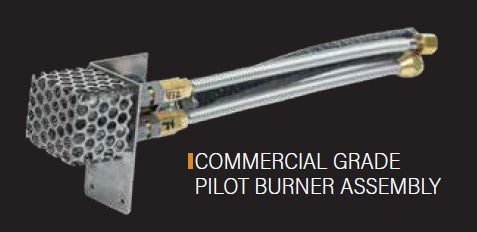

1. 12" Pilot assembly (contact us after order if you want a longer one)

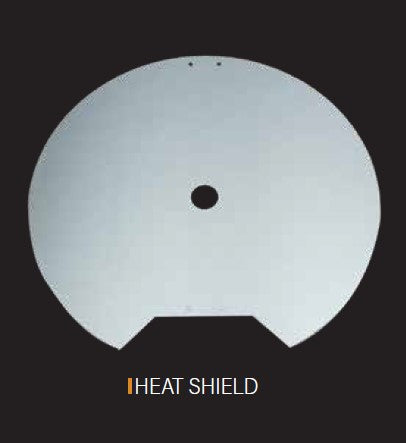

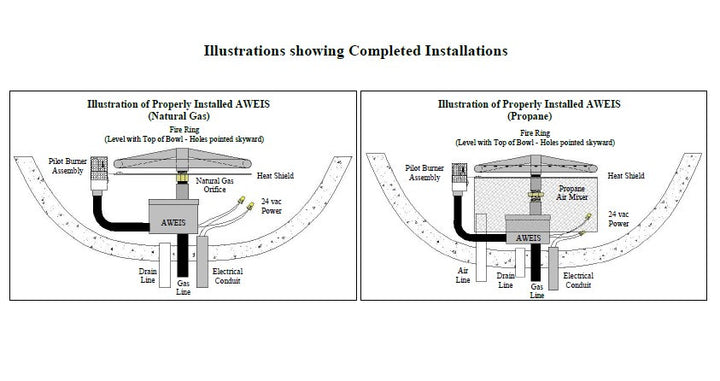

1. Heat shield to mount pilot next to the burner

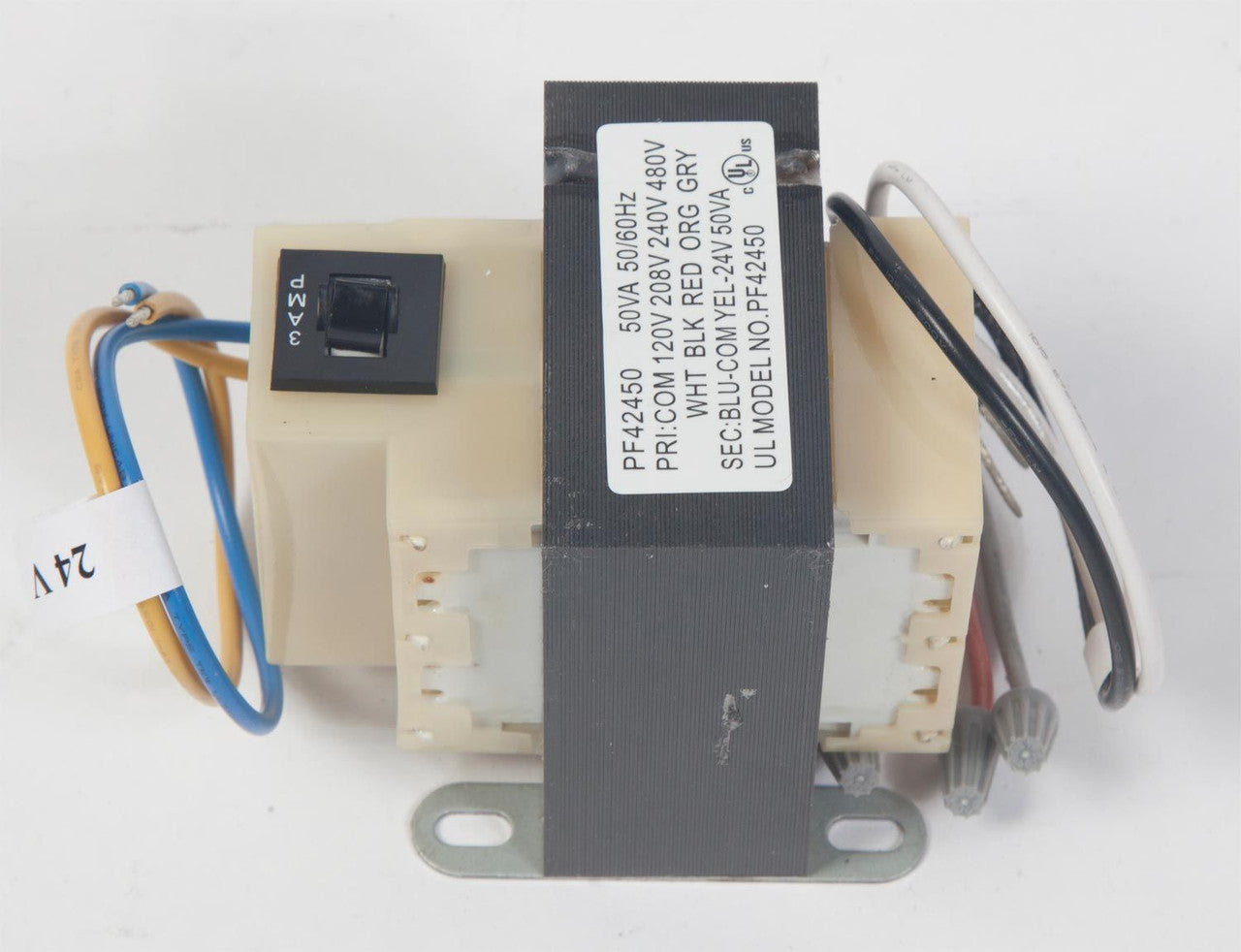

1. transformer
