When only the best will do, our top of the line Fire Magic 48-Inch Echelon Diamond E1060i Built-In Grills with Analog Thermometer combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state of the art features such as hot surface ignition, blue backlit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
FEATURES:
- Heavy duty, patented Diamond Sear cooking grids
- Cast stainless steel “E” burners
- Contoured control panel w/ bright polished trim & brushed, back-lit knobs
- Heavy gauge stainless steel dual position, adjustable warming rack
- Heavy gauge all stainless steel Flavor Grids
- Digital touch-screen thermometer with Bluetooth or Wi-Fi connectivity
- Available with analog thermometer on oven measuring up to 1000° F
- 14” wide Drip Tray with ball-bearing glides and aluminum liners
- Angled halogen 12 Volt internal oven lamps
- Push-to-Light Hot Surface Electric Ignition system with flash tubes
- Recessed, premium high performance rotisserie Backburner
- Optional Magic View Window
SPECIFICATIONS:
- Primary cooking surface: 48” x 22” (1,056 sq. in.)
- Warming rack surface: 48” x 8” (344 sq. in.)
- Main burners: 112,000 BTU’s
- Backburners: 22,000 BTU’s (11,000 x 2)
- Cut-out dimensions: 50”w x 23½”d x 11½”h

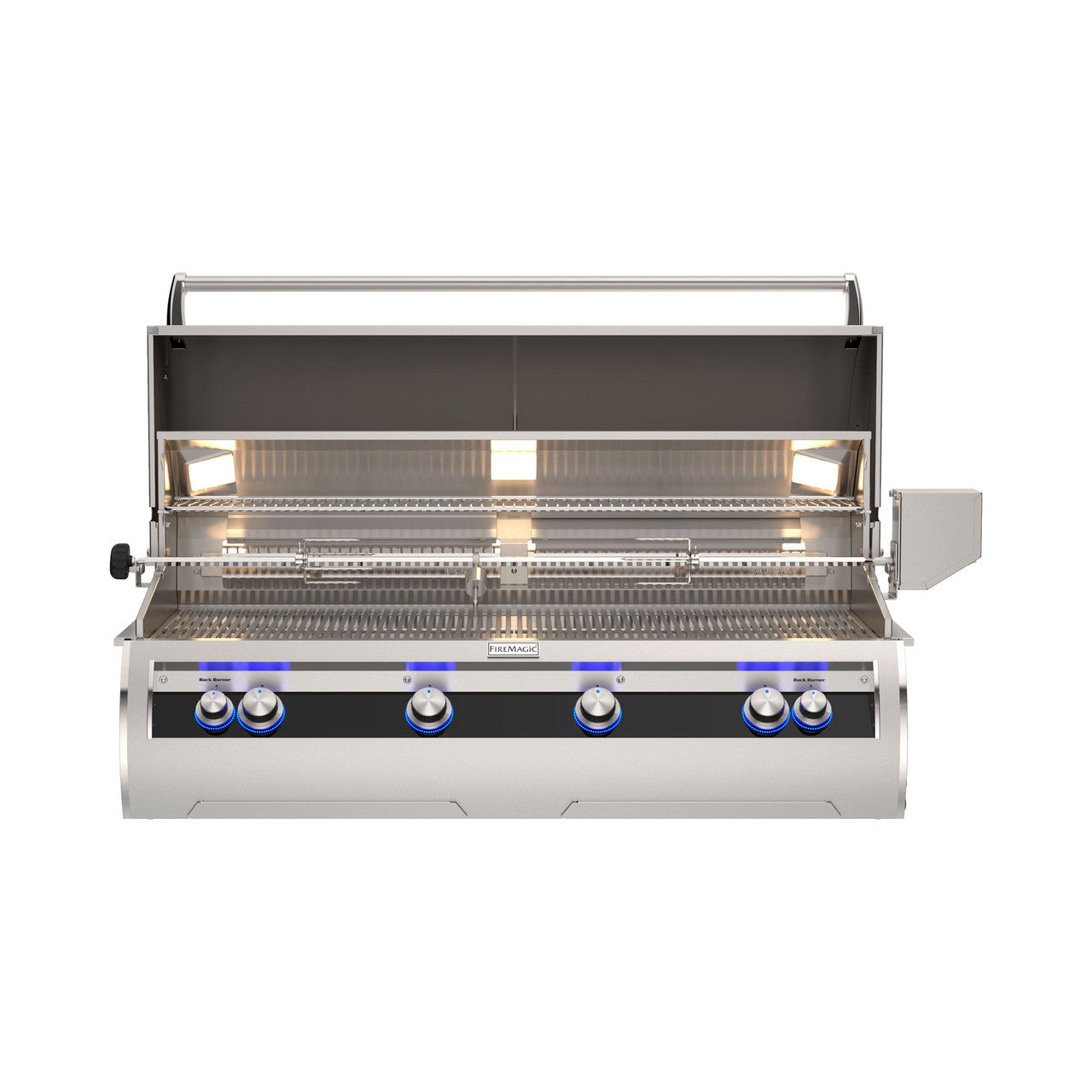

90 DEGREE DOUBLE WALLED HOOD
Double walled 304 stainless steel oven provides efficient heat retention for even heating. The oven opens to 90 degrees for easy access and efficient exhaust. The Teflon coated spring assist makes opening the oven smooth and accessible for all.
DIAMOND SEAR COOKING GRIDS
Diamond Sear Cooking Grids are superior! Diamond Sear Cooking Grids have a patented* design with bars that have a smooth flat top; each individual bar measures over .35” wide at the top covering over one half of the total cooking surface. Each bar is shaped to optimally transfer the heat from the burners to the cooking surface so food cooks faster and more evenly!
FLAVOR GRIDS
Flavor Grids perform by allowing heat to rise unobstructed from the burner to cooking grids. They disperse heat quickly and evenly flavor the food by vaporizing juices and minimizing flare ups and grease fires. They are also easy to clean and maintain.
CAST STAINLESS STEEL BURNERS
Burners Made of ¼” Thick Cast 304 Stainless Steel 304 grade burners weighing up to 12 lbs, featuring a lifetime warranty. Designed with a protective lip above the ports to prevent clogging from grease. Guaranteed for life.

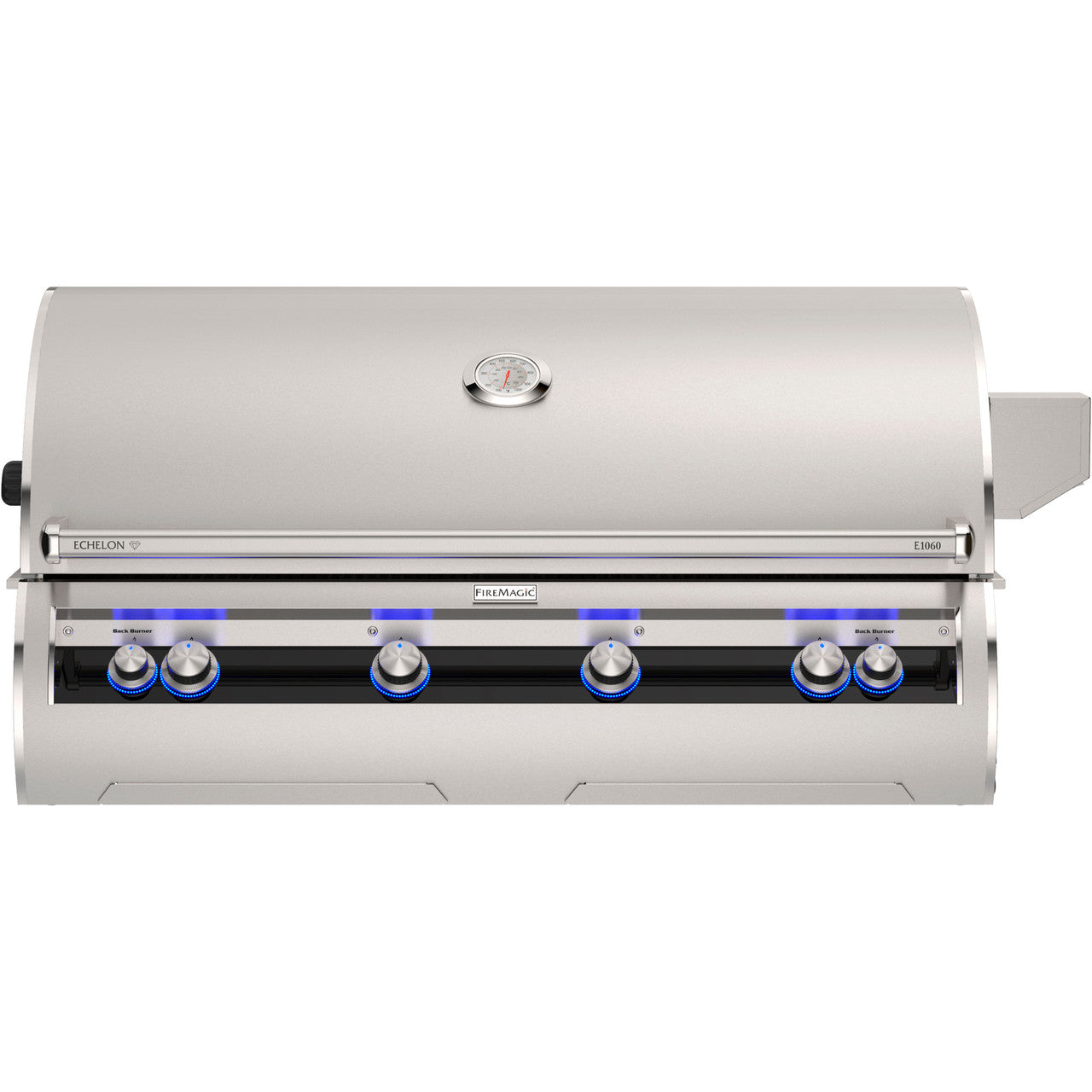

ANALOG THERMOMETER
Analog Thermometer with polished stainless steel bezel is embedded in the hood. It is large and attractive with a forward angle for easy viewing.
ANGLED HALOGEN INTERNAL LIGHTS
The Echelon Diamond E1060i grills have 3 internal halogen lamps.
RECESSED INFRARED BACKBURNER
The Fire Magic Infrared Backburner is a stainless steel mesh encased efficient ceramic system which provides much more BTU heat for quicker more efficient rotisserie grilling. It includes a Stainless Steel Cover to protect the back burner when not in use.
HOT SURFACE IGNITION SYSTEM
Hot Surface Ignition System is the most advanced and reliable lighting system available. Simply push in the control knob to activate the hot surface, turn up the gas, and light your grill. 110V electricity needed.
ECHELON DRIP TRAY ANALOG
Built with ball bearings for easy glide. Perfect size for easy handling. Use with Fire Magic drip tray liners for convenient cleanup.
COMFORT TOUCH KNOBS WITH BRUSHED FINISH
Contoured control panel and smooth, seamless lines with a brushed finish that feature back-lit knobs. Comfort touch grips and flame icons for convenience and safety make grilling easy.

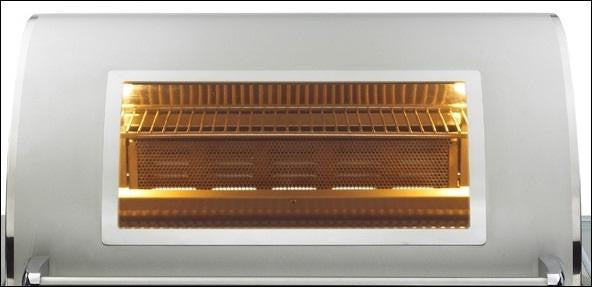

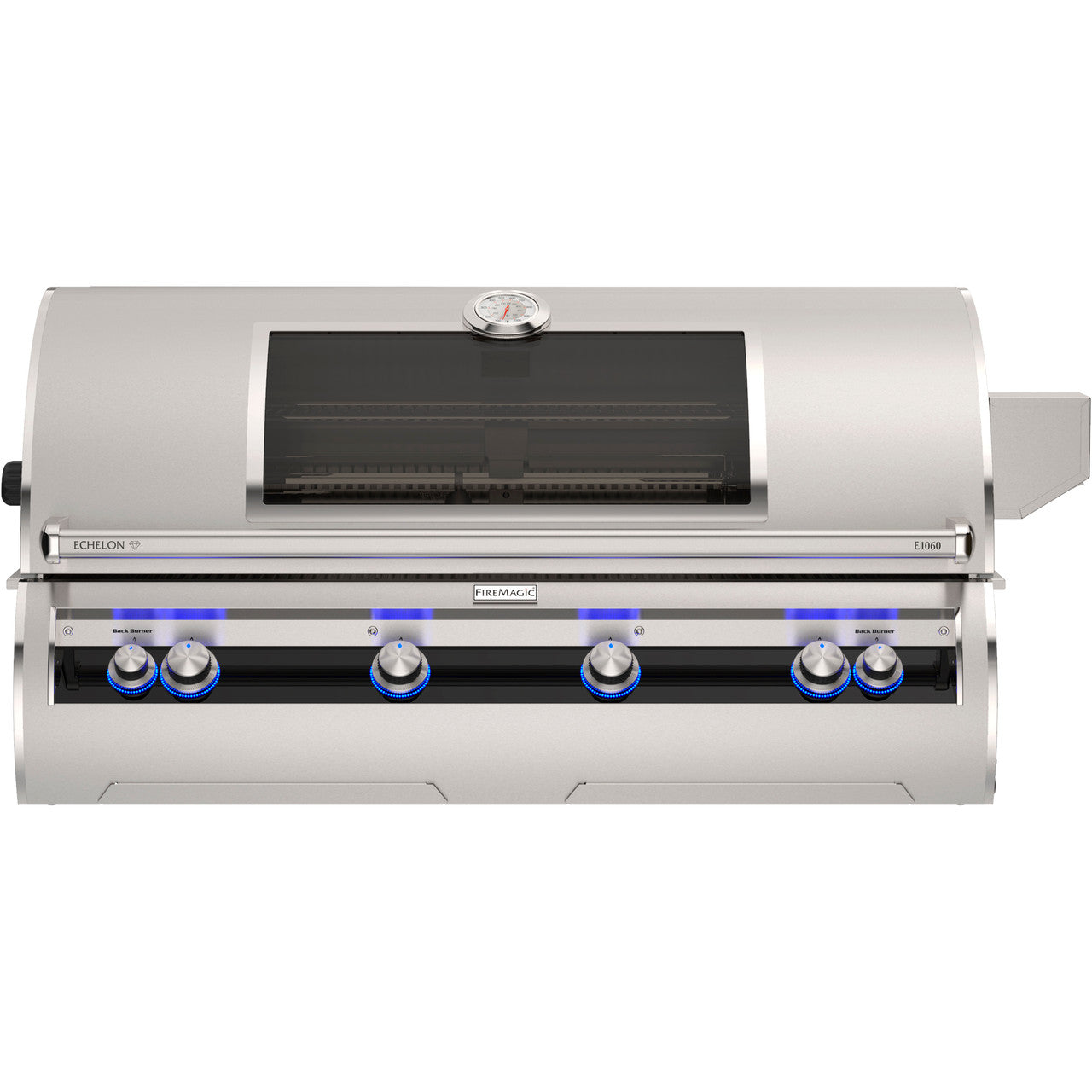

OPTIONAL MAGIC VIEW WINDOW
All Fire Magic Echelon grills and Aurora (A790 & A660) Grills are offered with an optional Magic View Window, which allows you to monitor grilled foods without lifting the hood and losing valuable heat.
