The new "EI Series" are HPC's top of the line, heavy duty, stainless steel fire pits featuring remote control flame as well as auto-relight if the flame is lost. This is our most advanced control system with numerous convenience and performance improvements. This High/Low model has flame control via our new remote or smart phone app, a redesigned hot surface igniter, and many other improvements.
How it works:
Start Up: This is done by use of a wall switch or remote control (included with HIGH/LOW model) . When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or smart phone.
High / Low Flame Control Models:

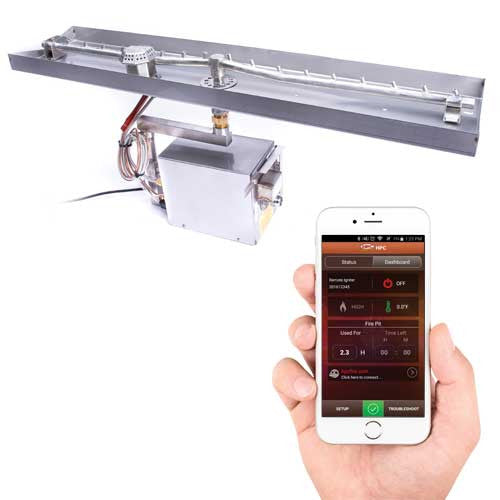

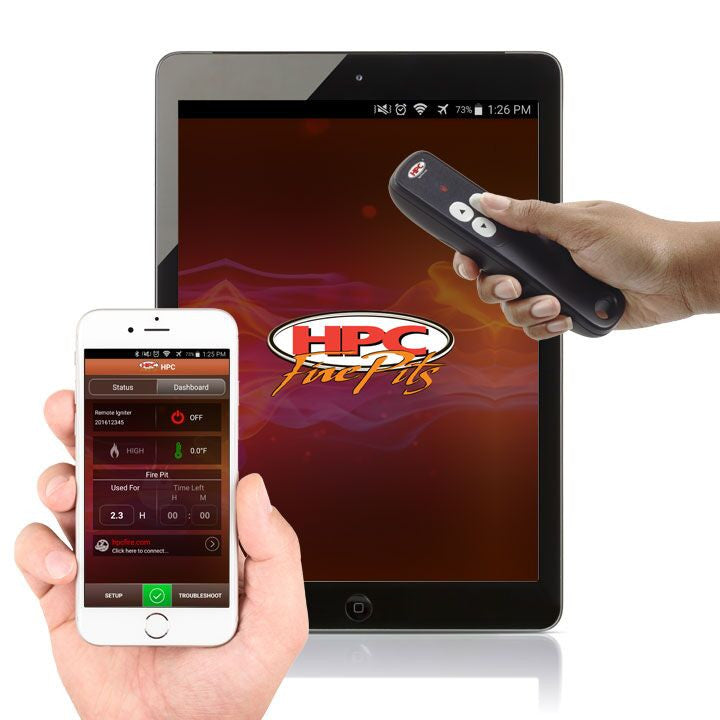

This model includes a remote control and smart phone app with 2-way communication with the gas fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
Features:
- 250k BTU, 24VAC or 120VAC
- 121" x 8", 16 Gauge SS Pan, 1.5" sidewalls, 120" SS Linear Burner with HPC's Innovative Raised Hub Technology for water prevention
- Hot Wire Ignition (HWI)
- Built and tested in USA, arrives fully assembled.
- NOTE: Input Flex Line, Vinyl Cover and Lava Rock are not included- sold separately.
- Fully Assembled, ready to install.
- Control components are protected within a 16 gauge SS valve control box
- Start via wall switch, remote, or whole house system.
- Auto re-light if flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control and Smart Phone App included).
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- 24vac Option: Typically used pool side or with other lower voltage requirements.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff.
- CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements. This new EI system already meets upcoming 2018 ANSI requirements.
