HPC understands not all outdoor areas will have power supplied for the ease and safety of electronic ignition however flame sensing in your area may still be required by code. The certified Push Button / Flame Sensing line allows both the convenience of push-button ignition with the safety of flame sensing. Lighting the fire is as simple as pushing a button and flame height is fully adjustable via control knob. If for any reason your fire in your pit stops burning this system will safely turns off gas. This fire pit insert also incorporates a whistle-free flex line between the gas valve and burner pan offering insert flexibility and simpler installation.
How It Works:

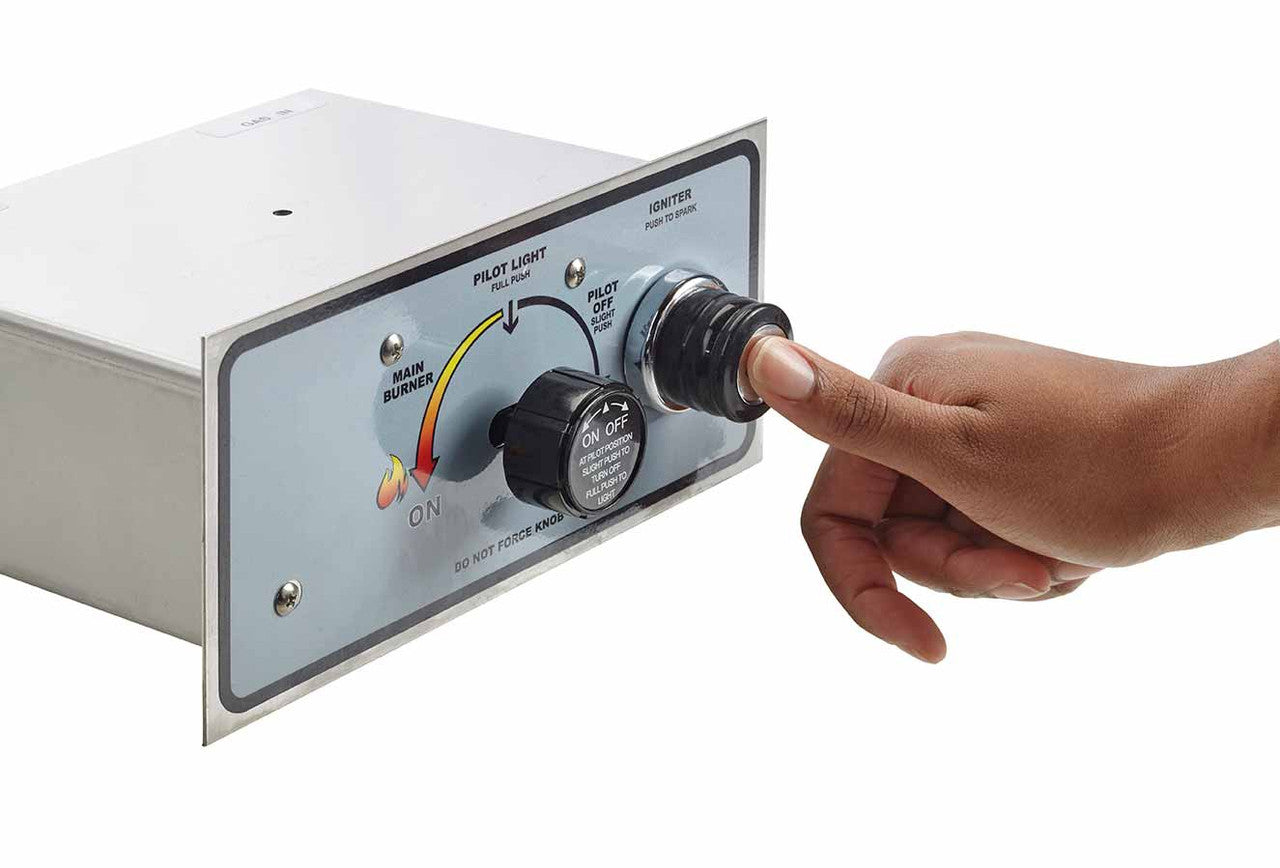

Start Up: This is done by simultaneously pressing valve control knob to start flow of pilot gas and pressing ignition button for spark. Release spark after pilot ignition, release valve control knob after ~20 seconds. Then turn valve control knob counterclockwise to light main burner.
Operation: Flame height may be adjusted by turning valve control knob- counterclockwise provides more flame, clockwise lowers flame. If flame loss does occur, the system will automatically turn off all gas flow.
Shut Down: To turn OFF the fire pit simply turn valve control knob clockwise- slightly depress knob to reach OFF position.
Features
- 24" Square 304 Stainless Steel Pan
- 18" 140k BTU Torpedo Penta Burner

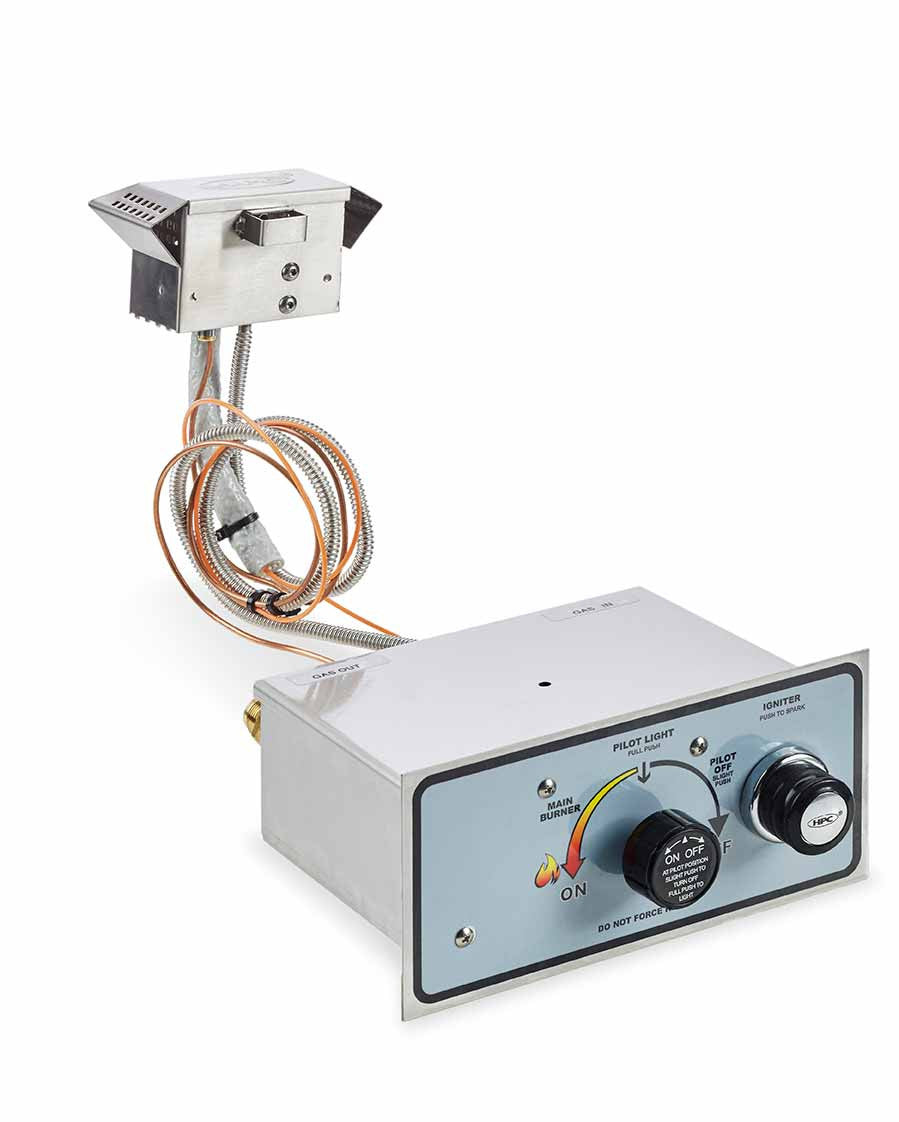

- Assembled FPPK Control Box w/ Pilot Assembly
- Battery powered manual spark igniter
- 3 Year Residential Warranty
- Stainless Steel Burner
- CSA Certified
- Available in Propane or Natural Gas

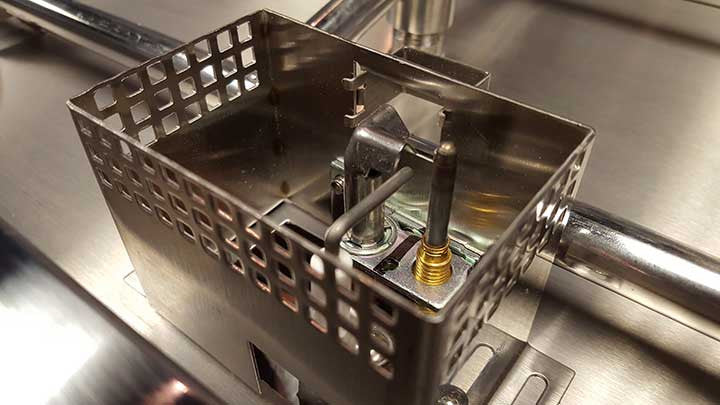

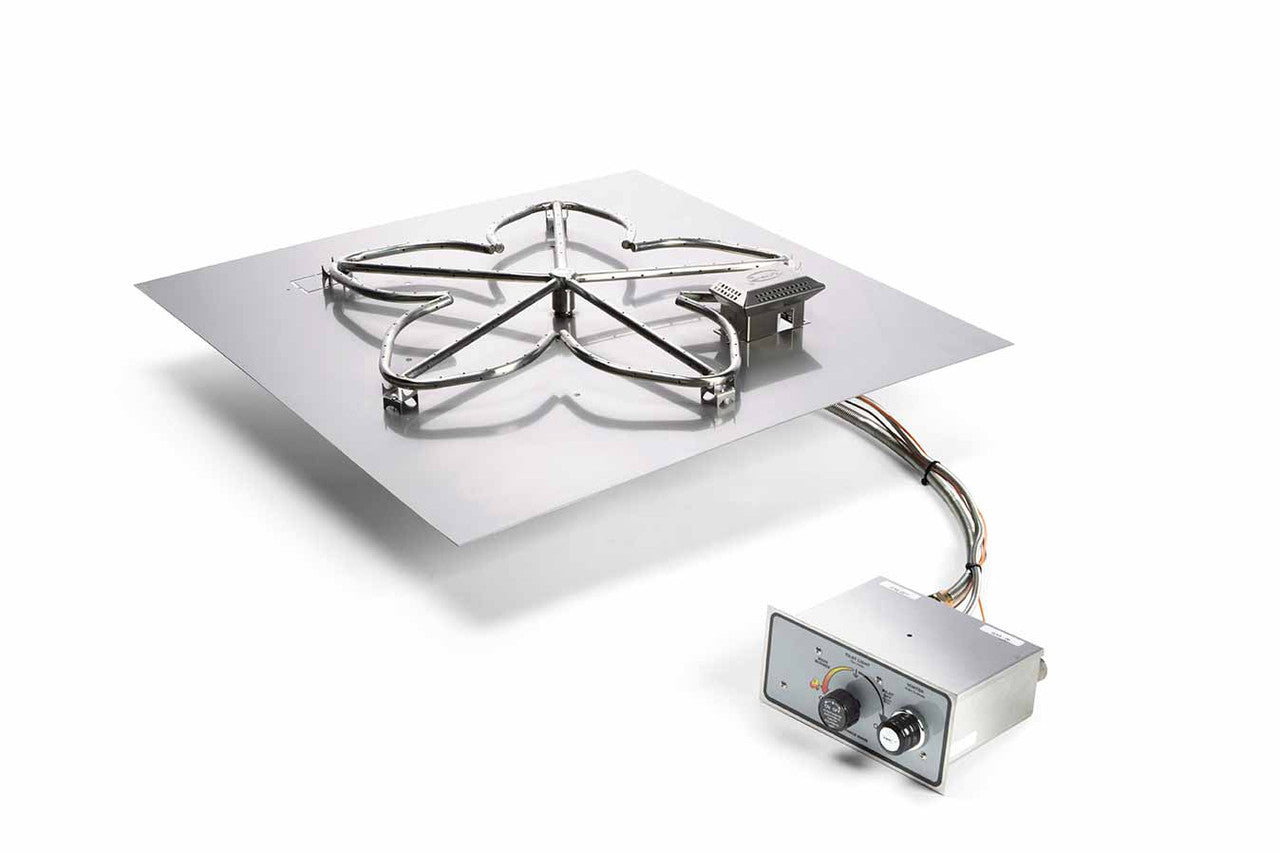

24" Square Flat Pan, 18" Torpedo Penta Burner, and FPPK flame sensing control box. Assembled, manual spark, flame sensing insert, up to 140K BTU, stainless steel. Simply push Ignition Spark Switch, depress Black Knob till pilot lights, rotate knob to light burner and adjust height as desired. Includes 36" standing pilot with thermocouple sensing to safely control gas flow, manual flame height adjustment, manual spark igniter (1.5volt, AA Battery), and mounted in a stainless steel box. battery can be replaced from outside of control box.
Lava Rock NOT Included
