How it works:
Start Up: This is done by use of a wall switch or remote control (included with HIGH/LOW model) . When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or smart phone. The commercial-grade SST Torpedo™ burner, available in Penta™, Linear and H configurations, is our newly designed nozzle which creates the biggest flame and is targeting those customers seeking an aesthetic and experience more like a bonfire. The commercial-grade SST Torpedo™ burner, available in Penta™, Linear and H configurations, is our newly designed nozzle which creates the biggest flame and is targeting those customers seeking an aesthetic and experience more like a bonfire
High / Low Flame Control Models:

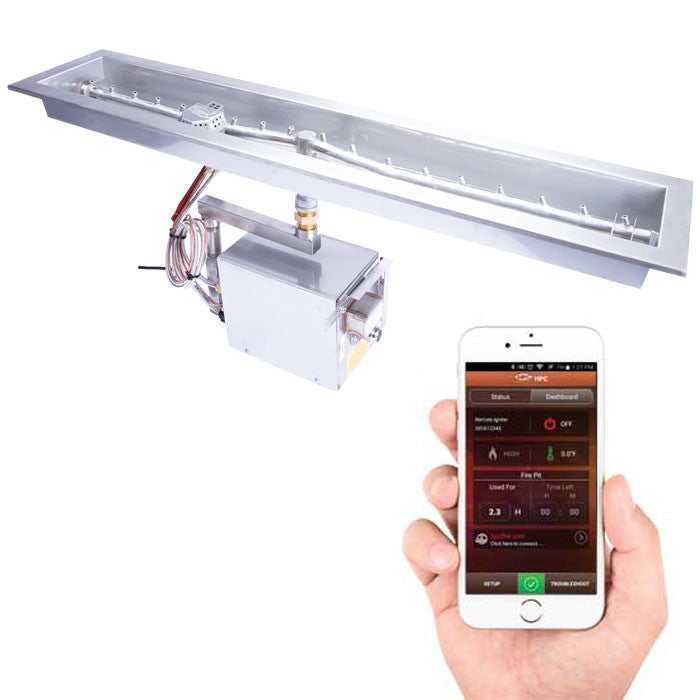

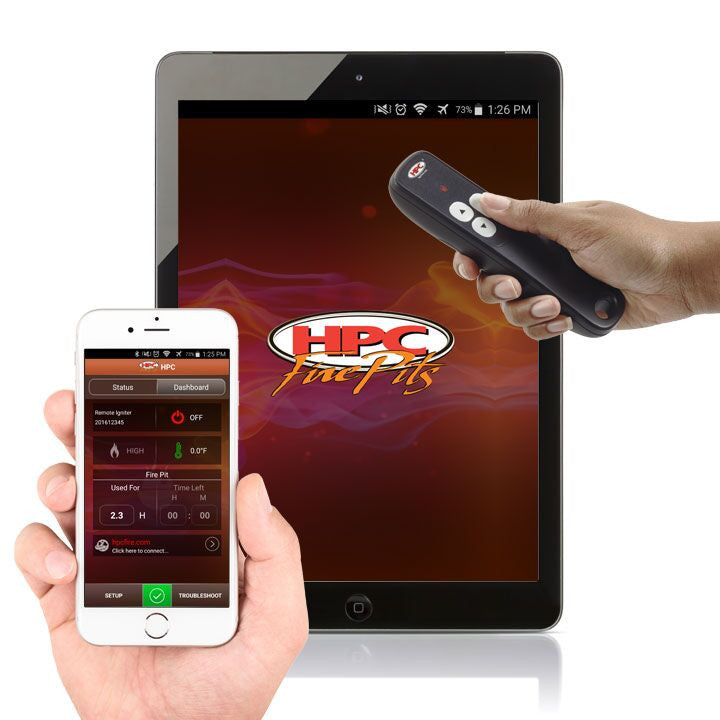

This model includes a remote control and smart phone app with 2-way communication with the gas fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
Features
- 125k BTU, 24VAC or 120VAC Powered
- 60" T-burner
- V-shape reduces amount of media
- Constructed from 304 stainless steel
- Fully Assembled with Control Box Mounted under Pan
- Includes 5.3" Wide Pan with 1.3" Lip and T-Burner (Precision Drilled Holes-Not Punched); 16 Gauge SS Valve Control Box
- Start via wall switch, remote or whole house system; Auto re-light if flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- On/Off models: Use with optional wall switch or Remote Control available.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turndown (Remote Control and Smart Phone App included).
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- 24vac Option: Typically used pool side or with other lower voltage requirements.*IMPORTANT: 24vac Models REQUIRE HPC/ SEBCO 24vac, 100W Power Supply
- Natural Gas
- Internal temperature monitoring with overheat auto shutoff.
- CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements. (This new EI system already meets upcoming 2018 ANSI requirements)!
- Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff. (See accessories)
- NOTE: EI MODELS INCLUDE: Insert: Fully Assembled. Flex Line: Gas Input and Instructions
- SOLD SEPARATELY (EI INSERT): On/Off Models 120VAC- Remote: 578-C
- SOLD SEPARATELY Vinyl Cover and Lava Rock
