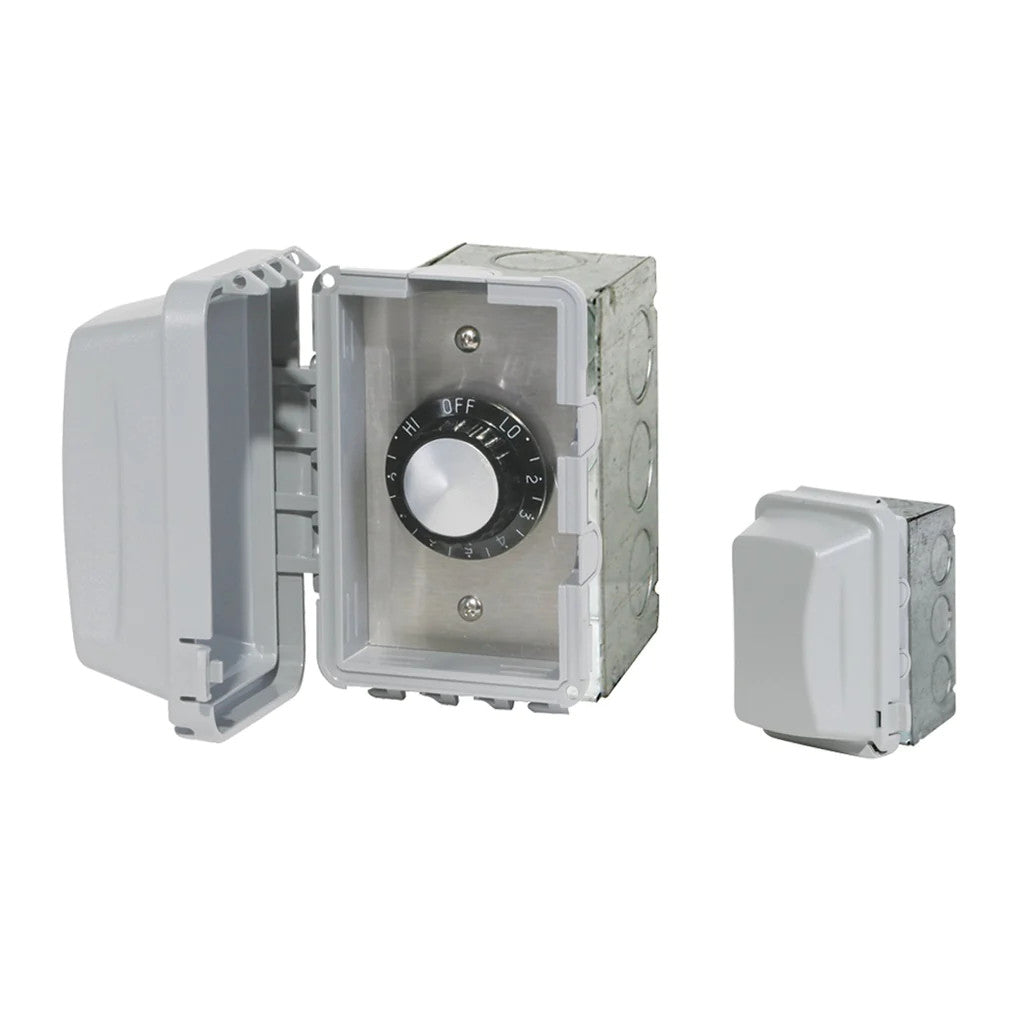

Weatherproof Covered 120 Volt Single In-Wall Heat Regulator by Infratech - 14-4110
For exposed outdoor situations, single-in-wall heat control systems with weatherproof coverings are available. Use item #14-4110 for applications requiring 120 volts. Use #14-4210 for 240 volt applications only. includes weatherproof front cover, stainless steel face plate, and gang box. Maximum load of 15 amps.
One "Infinite Switch" is the INF input regulator. It uses a bi-metal contact to function. As the internal contact heats up and cools down, it pulses the heater on and off. It is frequently applied to electric heaters and is regarded as a crude kind of control.
Dimensions and characteristics of the #14-4110 and #14-4210 controls:
Gang Box: 4" high by 2 1/8" wide by 2 1/4" deep.
Size of SS Plate: 4 3/8" H x 3 5/8" W
Weatherproof Cover: (Tab on cover extends 1/4") x 5 1/2" h x 3 3/4" w x 2 3/4" d
Maximum load of 15 amps for 120 volts and 240 volts is #14-4110 and #14-4210.
UL Listed Stainless Steel Face Plate with a 3-Year Warranty
