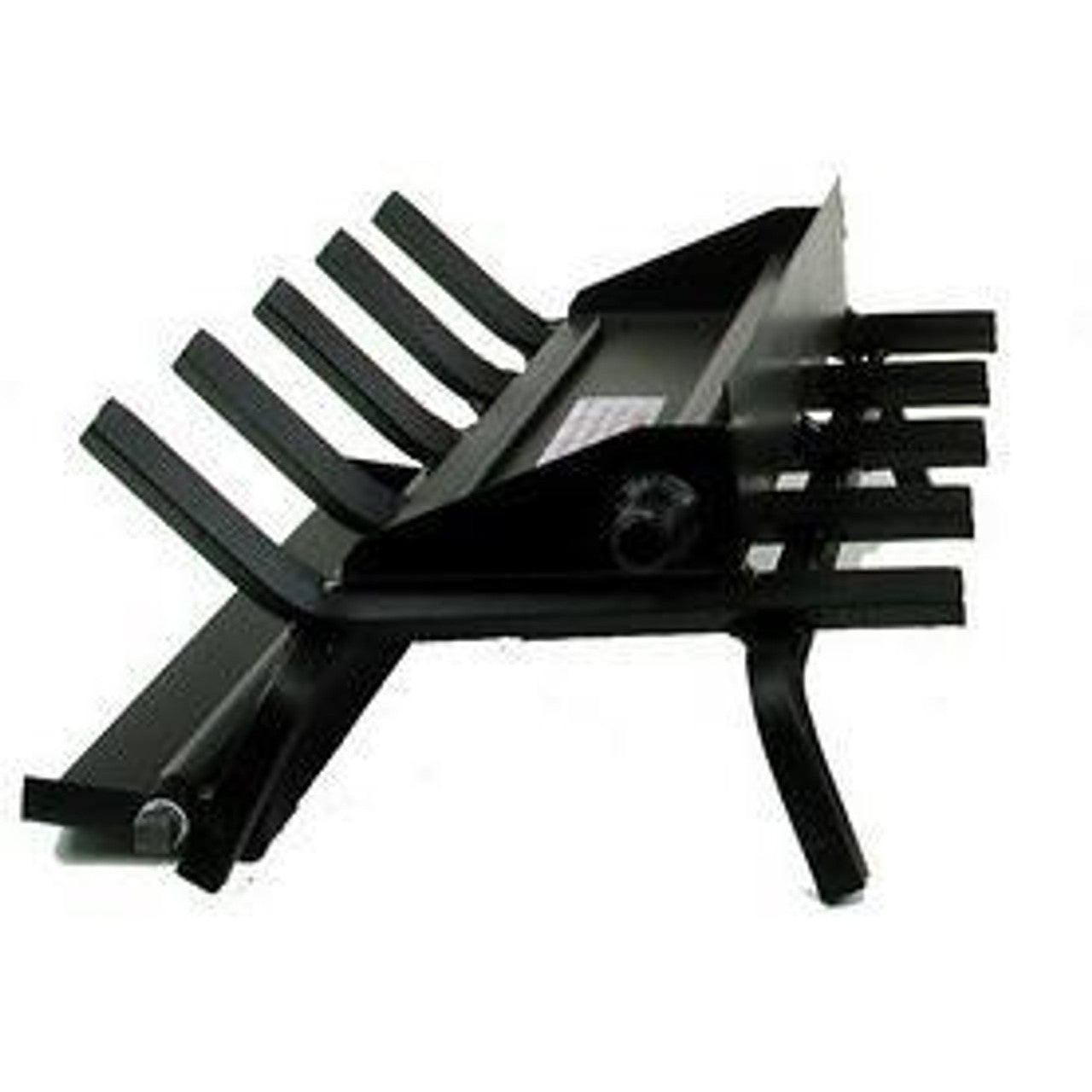

The Rasmussen "LC" Multi-Burner/Grate Hearth Kit for Double Face (See- Through) Fireplaces comes with multiple burners that are welded to the heavy grate. These designs require 3/4”-id and larger gas supply to provide adequate flame height. DF-LC is 21” deep.This Double Face Multi-Burner with Grate Hearth Kit Match Lighted comes with: 5/8" steel grate.
This burner is for use only in fully functioning fireplaces in which it is safe to burn wood and with the damper wide open. Glass doors must be wide open when burning for proper ventilation, proper combustion and cooling of safety control calves and components.
Size, BTUs(NG/LP), and Weight:
18, 20, 21 --- 200k / 170k, 80 lbs - use 2-PH18 logs
24 --- 220k / 190k, 100 lbs - use 2-PH24 logs
27, 30 --- 240k / 210k, 130 lbs - use 2-PH30 or PH30X
36, 42 ---260k / 230k, 160 lbs - use 2-PH36 or PH42
